DALI RGBW Wall Mount Controller DT8 4 Zone IP20 White

Enquire
Stock Available:
Auckland: 24 EACH | Christchurch: Contact us

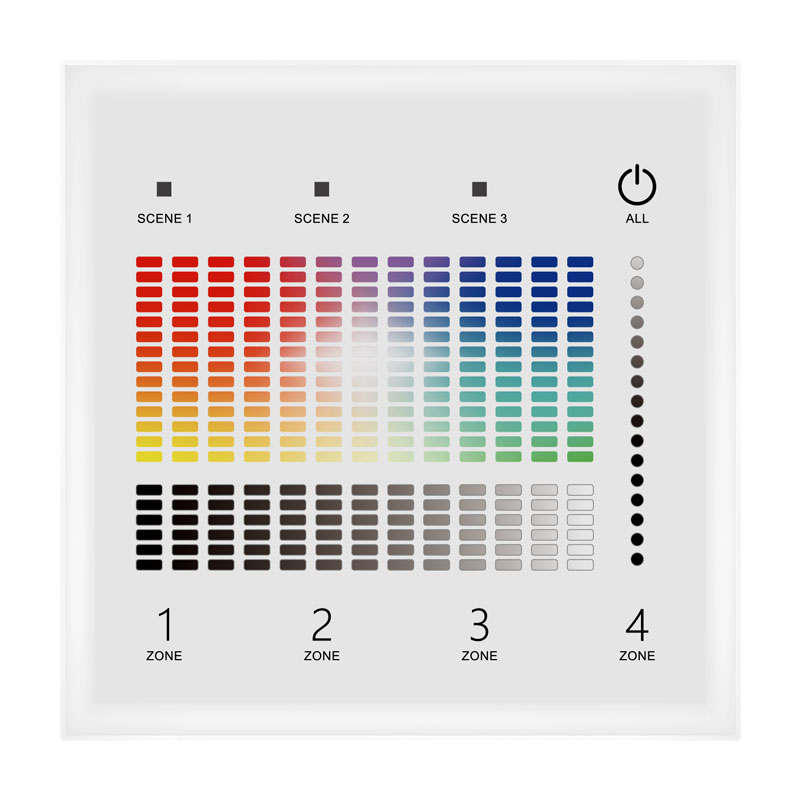

TD4-4S RGBW DALI Master Touch Panel is a refined control interface designed specifically for multi-zone RGBW lighting systems. Supporting four DALI addresses and DT8-RGBW control, it offers smooth colour adjustment with DALI-2 certification for reliable system integration. Powered by the DALI bus or 24VDC, it allows flexible address selection via an encoding switch with support for unicast, group and broadcast modes. Featuring an ultra-sensitive, high-strength glass touch panel with an integrated colour slide, it delivers colour control with three scene memory options and LED touch indicators. Compatible with RF 2.4GHz four-zone remote controls.

Product Info

Code LCDMSD-TD4-4SW
Warranty 5 Years
Voltage Input 100-240VAC
Voltage Output 16-24V DC
Amps Output 0.017 @ 16V, 0.002 @ 24V
Channels 4
Dimming Range 0-100%
Input Dimming RF, Touch
Output Dimming DALI
IP Rating 20
Working Temperature -20°C to 50°C
PDF View Spec Sheet
PDF Wiring Diagram

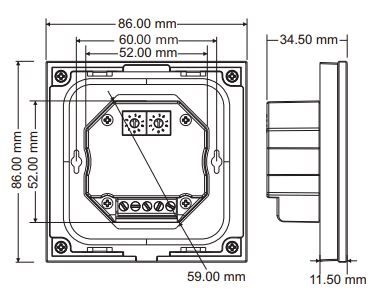

Dimension Drawing
