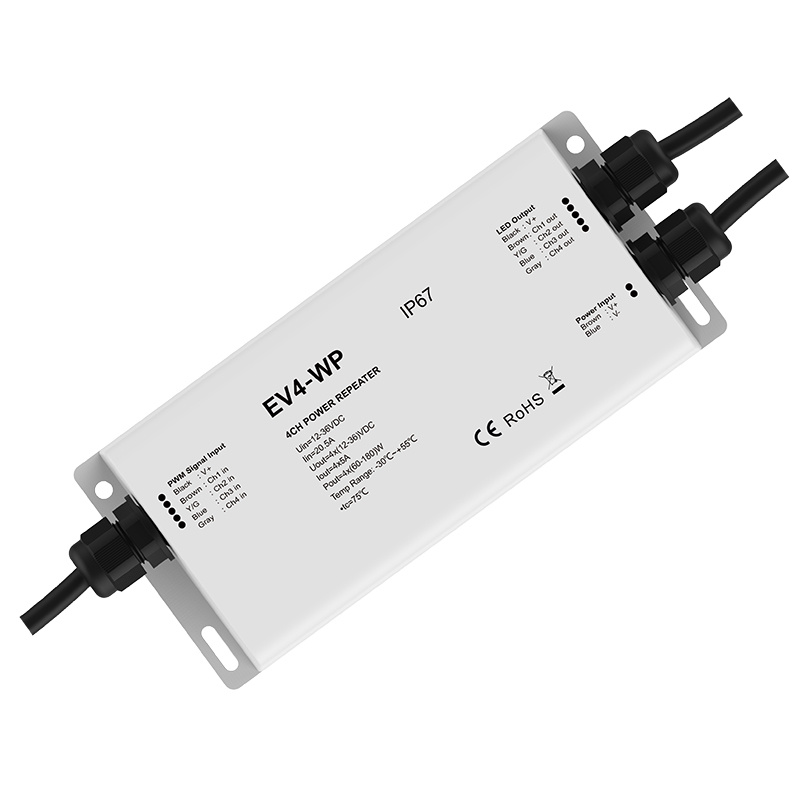

Data Repeater 12-36VDC 5A x 4Channel IP67

Enquire
Stock Available:
Auckland: 7 EACH | Christchurch: Contact us

Engineered for demanding outdoor and damp environments, this 12-36V constant voltage data repeater features a fully sealed IP67 rated housing for reliable weatherproof performance. With four independent output channels delivering up to 5A per channel, it boosts PWM control signals while supporting unlimited expansion via series or parallel connections. Ideal for single colour, dual colour, RGB, and RGBW constant voltage LED strips and modules, it ensures stable power delivery and consistent brightness.

Product Info

Code LCDRSD-EV4-WP
Warranty 5 Years
Voltage Input 12-36V DC
Voltage Output 12-36V DC
Output Power 720W
Output Current 5A/ch
Amps Output 20A
Channels 4
Dimming Range 0-100%
Input Dimming PWM
Output Dimming PWM
IP Rating 67
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

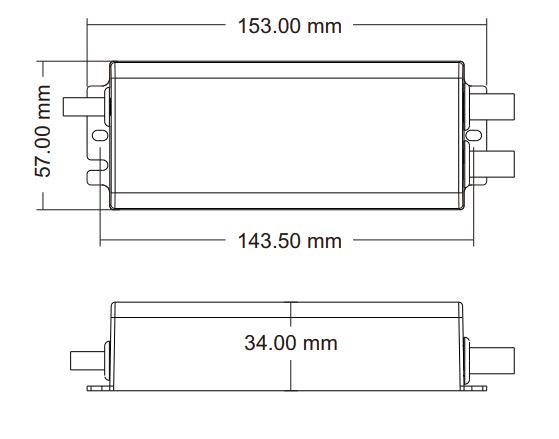

Dimension Drawing
