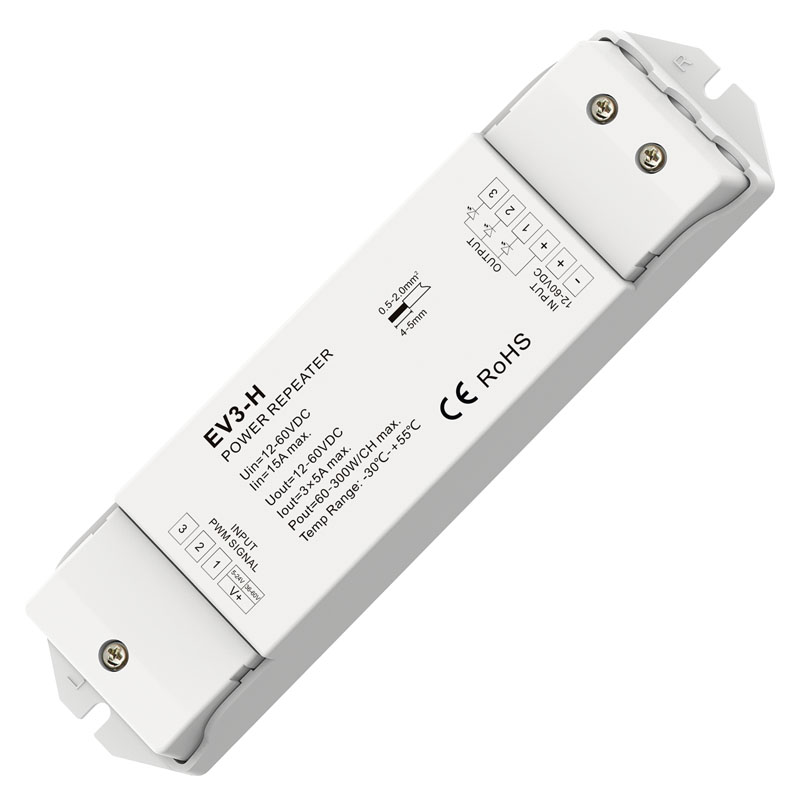

Data Repeater 12-60VDC 5A x 3Channel IP20

Enquire
Stock Available:
Auckland: 26 EACH | Christchurch: Contact us

Designed for versatile multi channel LED expansion, this 12–60V constant voltage data repeater delivers three independent output channels with up to 5A per channel. It amplifies PWM control signals and supports unlimited expansion via series or parallel connections, making it ideal for extending single colour, dual-colour, and RGB constant voltage LED strips or modules. Reliable signal boosting and stable power delivery ensure consistent brightness across complex lighting installations.

Product Info

Code LCDRSD-EV3-H
Warranty 5 Years
Voltage Input 12-60V DC
Voltage Output 12-60V DC
Wattage 6W
Output Power 300W
Output Current 5A/ch
Amps Output 5A/ch
Channels 3
Dimming Range Dependent on driver(s)
Input Dimming PWM
Output Dimming PWM
IP Rating 20
Working Temperature -20°C to 50°C
PDF View Spec Sheet
PDF Wiring Diagram

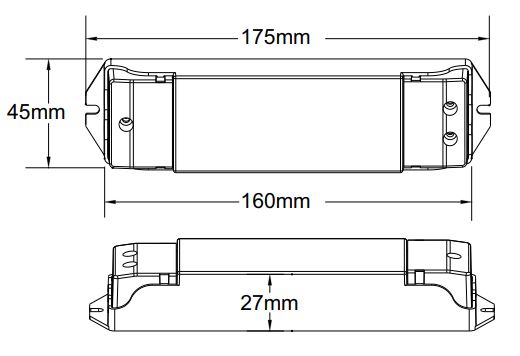

Dimension Drawing
