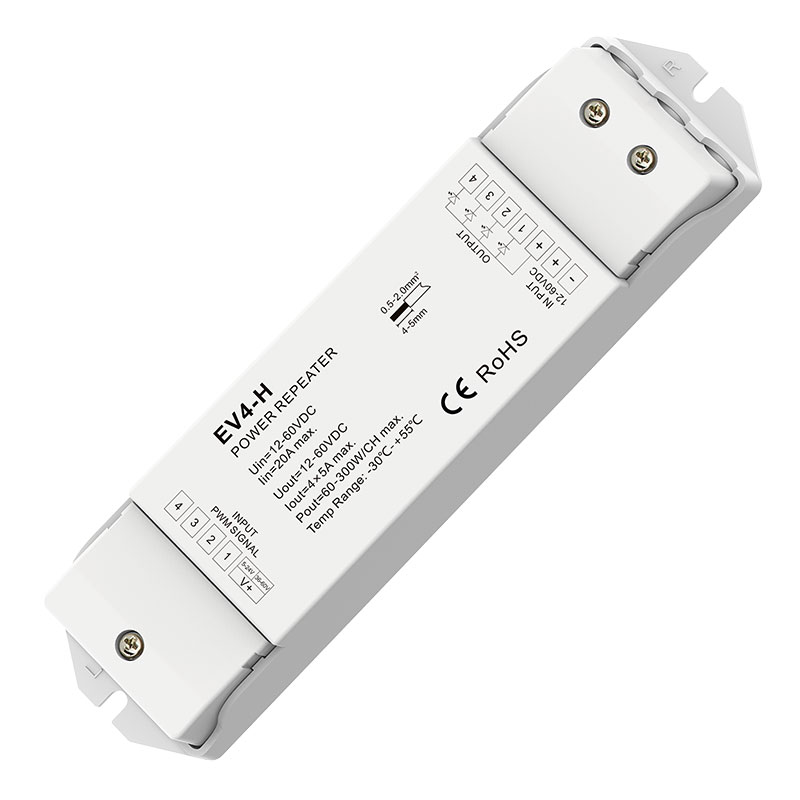

Data Repeater 12-60VDC 5A x 4Channel IP20

Enquire
Stock Available:
Auckland: 73 EACH | Christchurch: Contact us

Built for advanced multi channel LED expansion, this 12–60V constant voltage data repeater features four independent output channels with up to 5A per channel. It boosts PWM control signals and supports unlimited system expansion via series or parallel connections, making it ideal for extending single colour, dual colour, RGB, and RGBW constant voltage LED strips or modules. Designed for stable power delivery and consistent brightness across large, complex lighting installations.

Product Info

Code LCDRSD-EV4-H
Warranty 5 Years
Voltage Input 12-60V DC
Voltage Output 12-60V DC
Output Power 240W
Output Current 5A/ch
Amps Output 5A/ch
Channels 4
Dimming Range Dependent on driver(s)
Input Dimming PWM
Output Dimming PWM
IP Rating 20
Working Temperature -20°C to 50°C
PDF View Spec Sheet
PDF Wiring Diagram

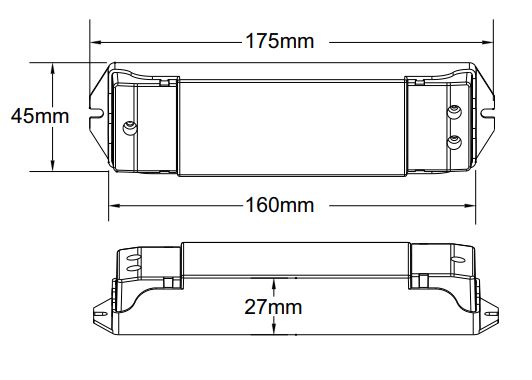

Dimension Drawing
