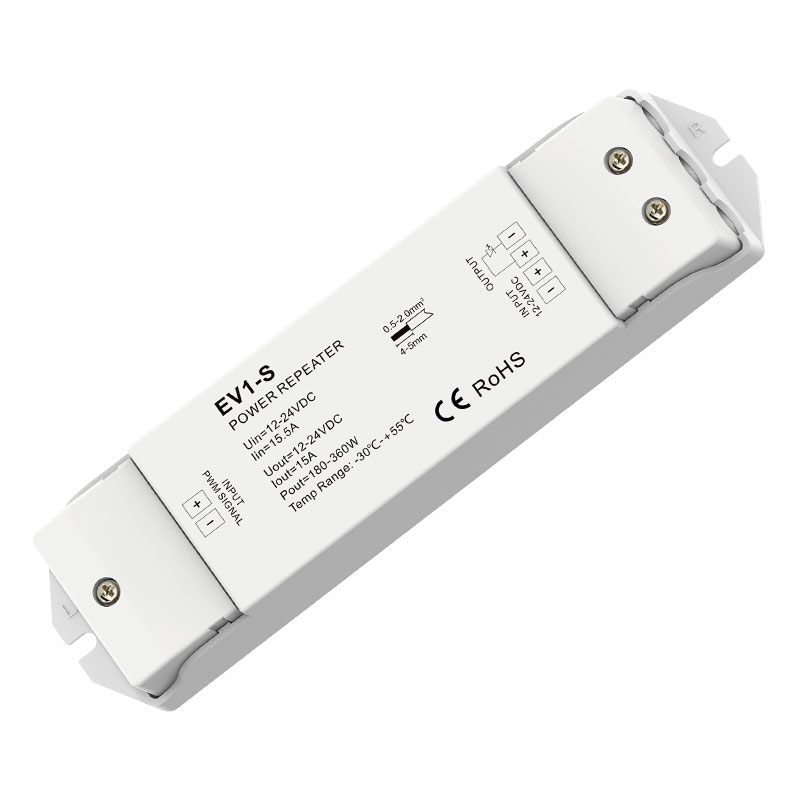

Data Repeater 15A 12-36VDC IP20

Enquire
Stock Available:
Auckland: 16 EACH | Christchurch: Contact us

Designed to expand and strengthen single colour LED installs, this high power constant voltage data repeater boosts PWM signals while delivering up to 15A of stable output. Operating on 12–24V DC, it can be connected in series or parallel to extend lighting runs without signal loss. Ideal for driving large scale single colour LED strips and modules with consistent brightness and reliable performance.

Product Info

Code LCDRSD-EV1-S
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Wattage =6W
Output Power 360W
Output Current 15A
Amps Output 15A
Channels 1
Dimming Range Dependent on driver(s)
Input Dimming PWM
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

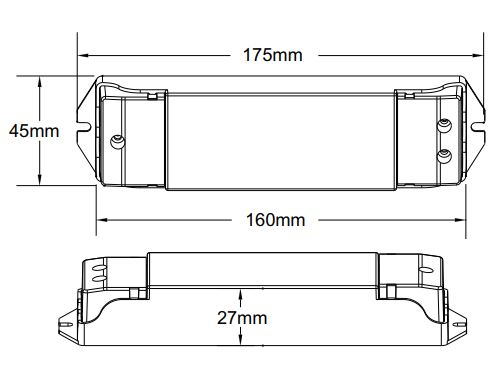

Dimension Drawing
