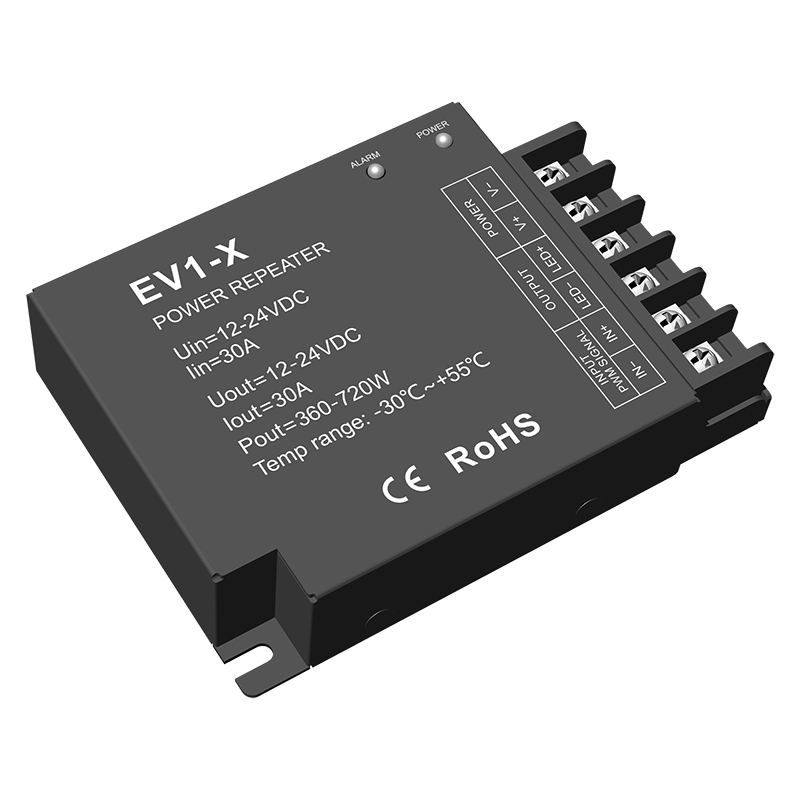

Data Repeater 30A 12-24VDC IP20

Enquire
Stock Available:
Auckland: 10 EACH | Christchurch: Contact us

Built for high-power single colour installs, this heavy-duty constant voltage data repeater delivers an impressive 30.5A output for demanding LED installations. Operating on 12–24V DC, it amplifies PWM control signals while allowing unlimited expansion via series or parallel connections. Ideal for large scale single colour LED strips and modules, it ensures consistent brightness, stable performance, and reliable signal distribution across extended lighting runs.

Product Info

Code LCDRSD-EV1-X
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Wattage =6W
Output Power 720W
Output Current 30A
Amps Output 30A
Channels 1
Dimming Range Dependent on driver(s)
Input Dimming PWM
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

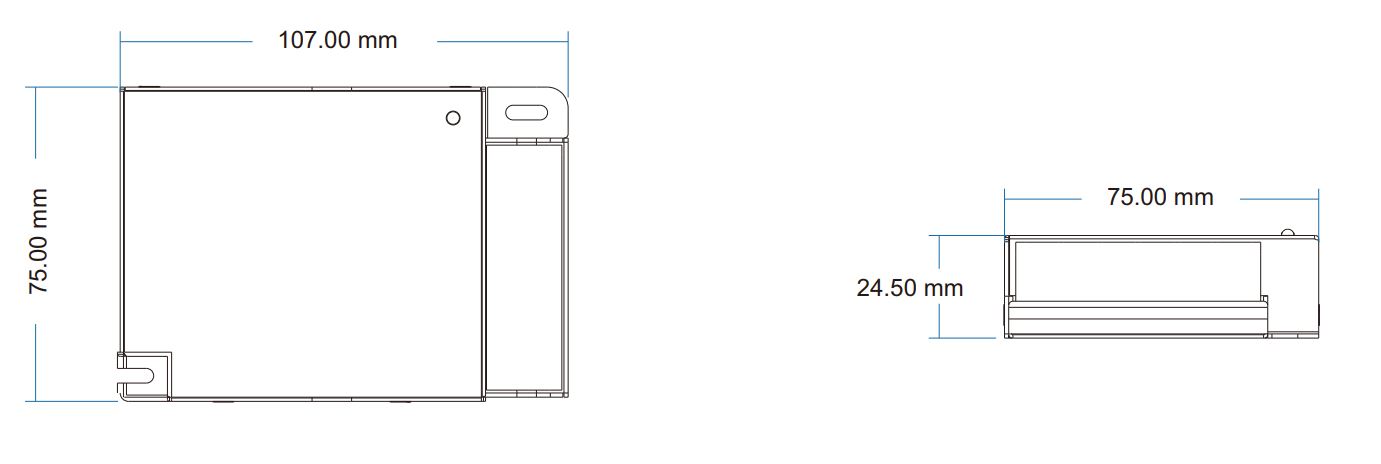

Dimension Drawing
