DMX Controller 5chan 20.5A 12-48VDC IP20

Enquire
Stock Available:
Auckland: 15 EACH | Christchurch: Contact us

A high-performance DMX512 decoder with digital addressing, full RDM control, selectable 8-bit/16-bit dimming, adjustable PWM frequencies, and linear or logarithmic dimming curves. Designed with automatic thermal, overload and short-circuit protection.

Product Info

Code LCDMXSD-D5-P
Warranty 5 Years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 960W
Output Current 5CH, 4A/ch
Amps Output 4A/ch
Channels 5
Dimming Range 0-100%
Input Dimming DMX
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

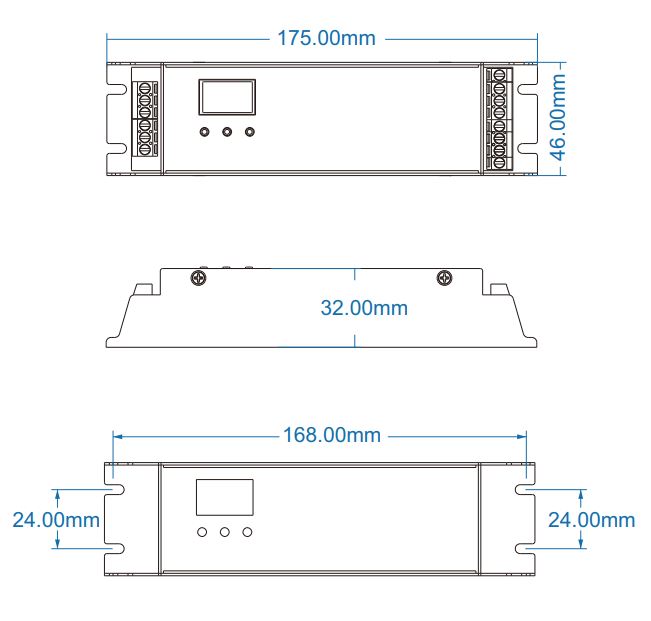

Dimension Drawing
