DMX Decoder 1Chan X 15.5A 12-24V IP20

Enquire
Stock Available:
Auckland: 7 EACH | Christchurch: Contact us

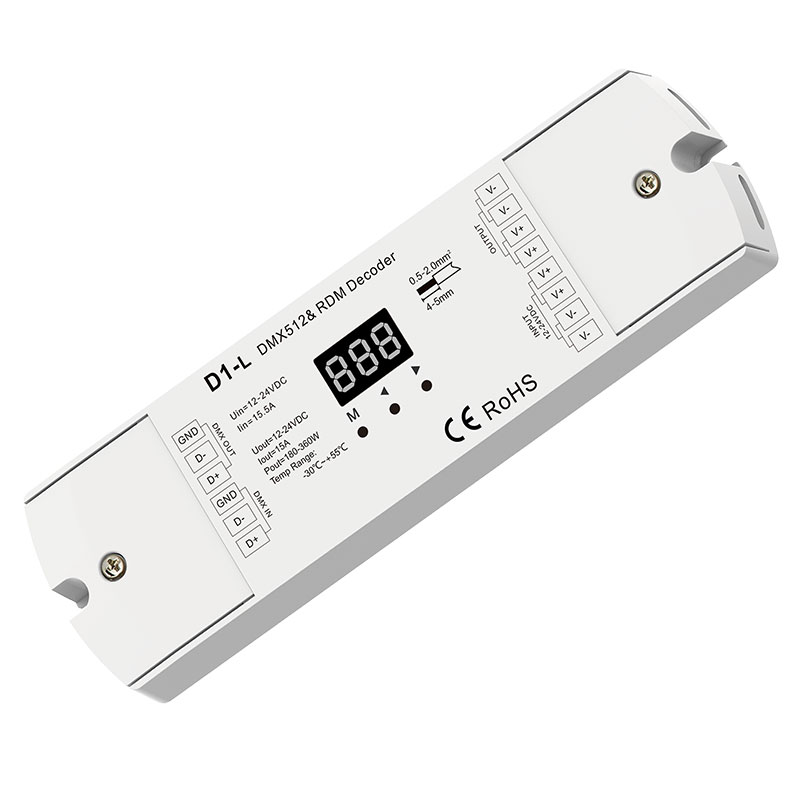

The D1-L is a versatile DMX decoder that is compliant with DMX512 protocols, featuring an easy-to-read digital display for quick address setup via onboard controls. With built-in RDM support, the address can also be configured directly from a DMX master console. Adjustable PWM frequency, selectable linear or logarithmic dimming curves, and flexible stand-alone or dimmer modes provide precise lighting control, while integrated overheat and short-circuit protection ensure reliable, safe operation.

Product Info

Code LCDMXSD-D1-L
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Output Power 360W
Output Current 15A
Amps Output 15A
Channels 1
Dimming Range 10-100%
Input Dimming DMX
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

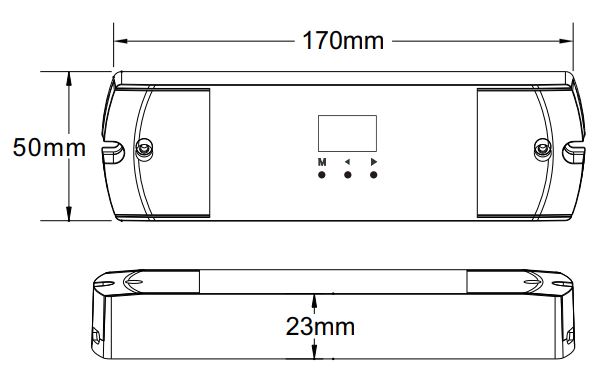

Dimension Drawing
