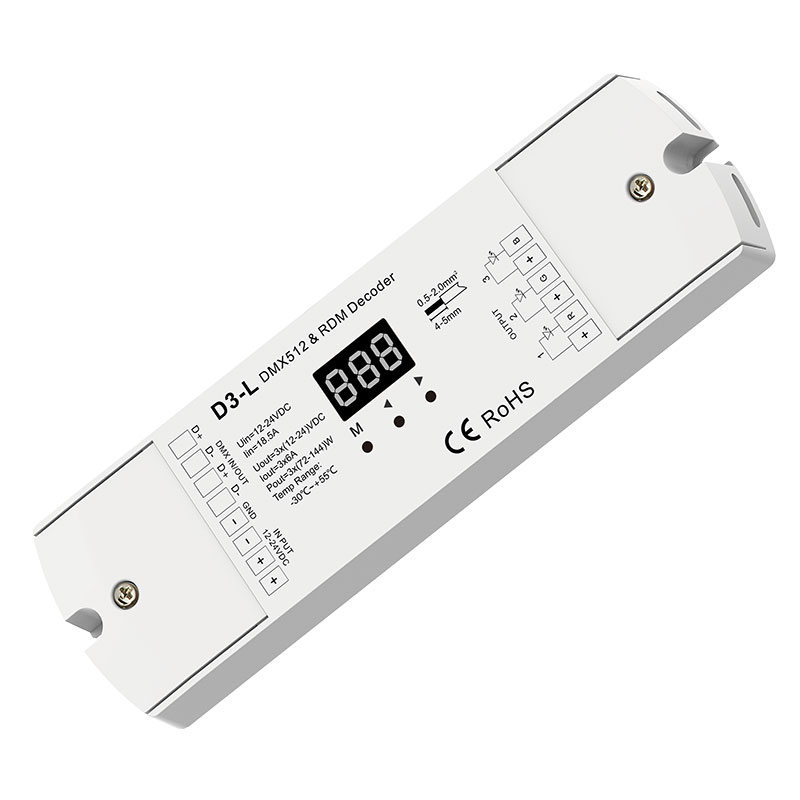

DMX Decoder 3Chan X 6A 12-24V IP20

Enquire
Discontinued
Stock Available:
Auckland: 45 EACH | Christchurch: Contact us

The D3-L is a versatile DMX decoder that is compliant with DMX512 protocols, featuring an easy-to-read digital display for quick address setup via onboard controls. With built-in RDM support, the address can also be configured directly from a DMX master console. Adjustable PWM frequency, selectable linear or logarithmic dimming curves, and flexible stand-alone or dimmer modes provide precise lighting control. D3-L offers stand-alone RGB and 3-channel dimmer modes with built-in programs for button control without a DMX signal. Complete with automatic overheat and short-circuit protection for safe, reliable operation.

Product Info

Code LCDMXSD-D3-L
Warranty 5 Years
Voltage Input 12-24V DC
Voltage Output 12-24V DC
Output Power 432W
Output Current 6A/ch
Amps Output 6A/ch
Channels 3
Dimming Range 0-100%
Input Dimming DMX
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

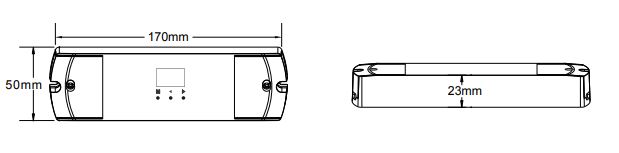

Dimension Drawing

Similar Products

  • View Product

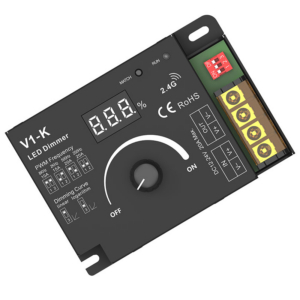

    LCDM-MAN-20A-24V

    Led Dimmer Manual 20A 12-48VDC V1K
  • View Product

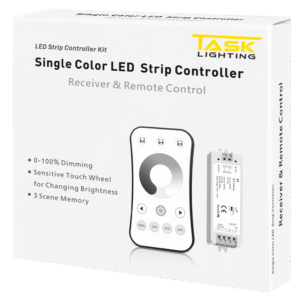

    LCDM600

    Remote Dimmer 12/24VDC IP20 8A
  • View Product

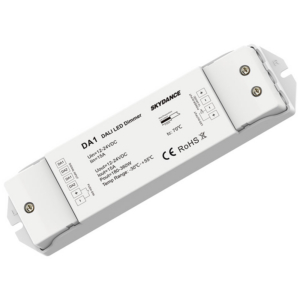

    LCDMSD-DA1

    DALI2 Single Channel 15A 12-24VDC, 10A 48VDC IP20
  • View Product

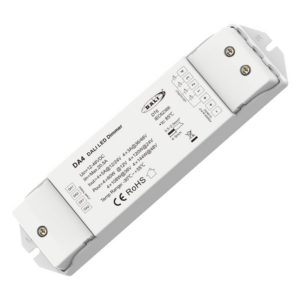

    LCDMSD-DA4

    DALI DT6 Dim Slave 12-48VDC 4X5A IP20
  • View Product

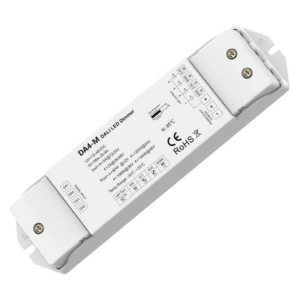

    LCDMSD-DA4M

    DALI2 DT8 Dim Slave 12-48VDC 4X5A @ 24VDC IP20
  • View Product

    LCDMSD-DTC

    1CH DALI Triac Dimmer 360W
  • View Product

    LCDMSD-L4-L

    Dim Slave 0-10V 5A X4Chan 12-36V 1P20
  • View Product

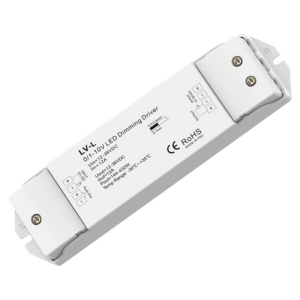

    LCDMSD-LV-L
