DMX Decoder 4Chan X 5A 12-24V IP20

Enquire
Stock Available:
Auckland: 39 EACH | Christchurch: Contact us

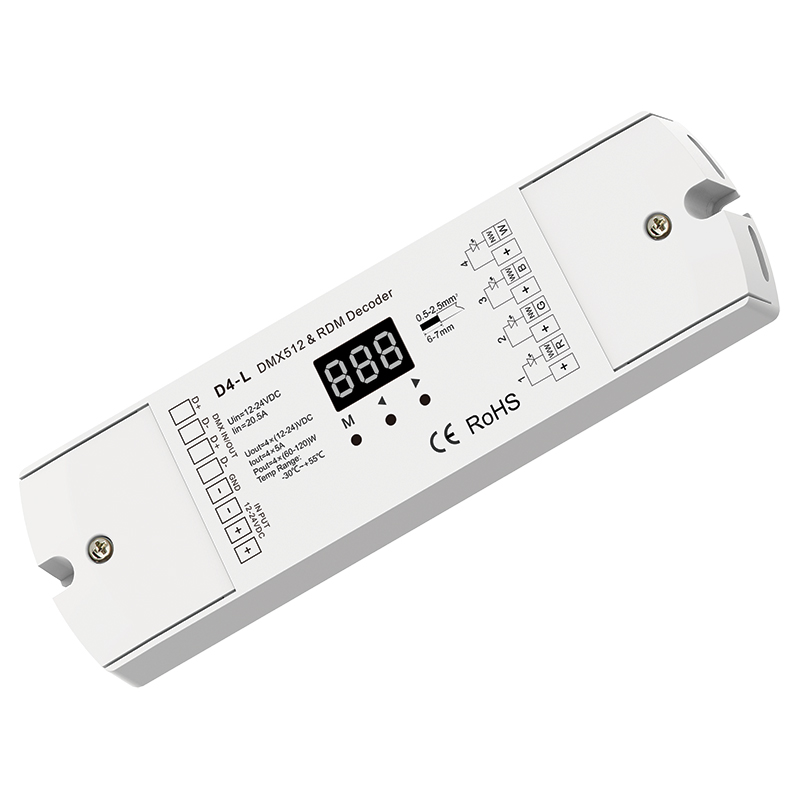

The D4-L is a versatile DMX decoder that is compliant with DMX512 protocols, featuring an easy-to-read digital display for quick address setup via onboard controls. With built-in RDM support, the address can also be configured directly from a DMX master console. Adjustable PWM frequency, selectable linear or logarithmic dimming curves, and flexible stand-alone or dimmer modes provide precise lighting control. D3-L offers stand-alone RGBW and 4-channel dimmer modes with built-in programs for button control without a DMX signal. Complete with automatic overheat and short-circuit protection for safe, reliable operation.

Product Info

Code LCDMXSD-D4-L
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Output Power 480W
Output Current 5A
Amps Output 5A
Channels 4
Dimming Range 0-100%
Input Dimming DMX
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 50°C
PDF View Spec Sheet
PDF Wiring Diagram

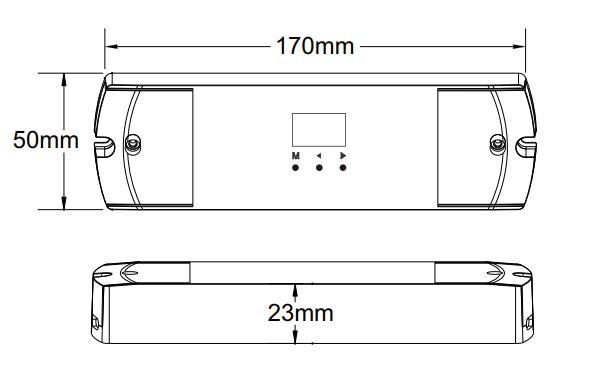

Dimension Drawing
