DMX Ext Controllerr 4Chanx5A 12-48VDC IP67

Enquire
Stock Available:
Auckland: 10 EACH | Christchurch: Contact us

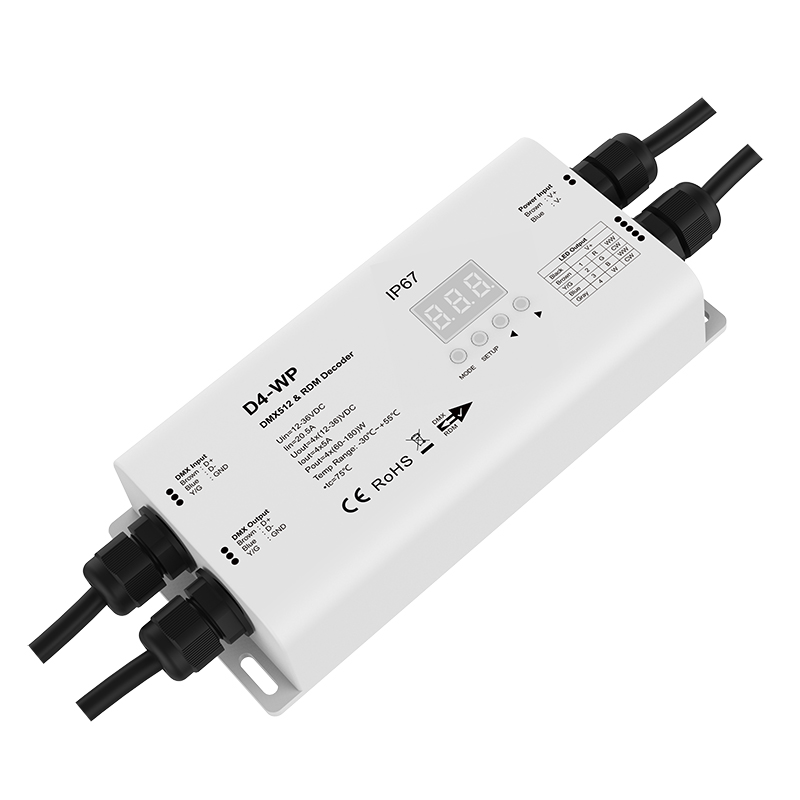

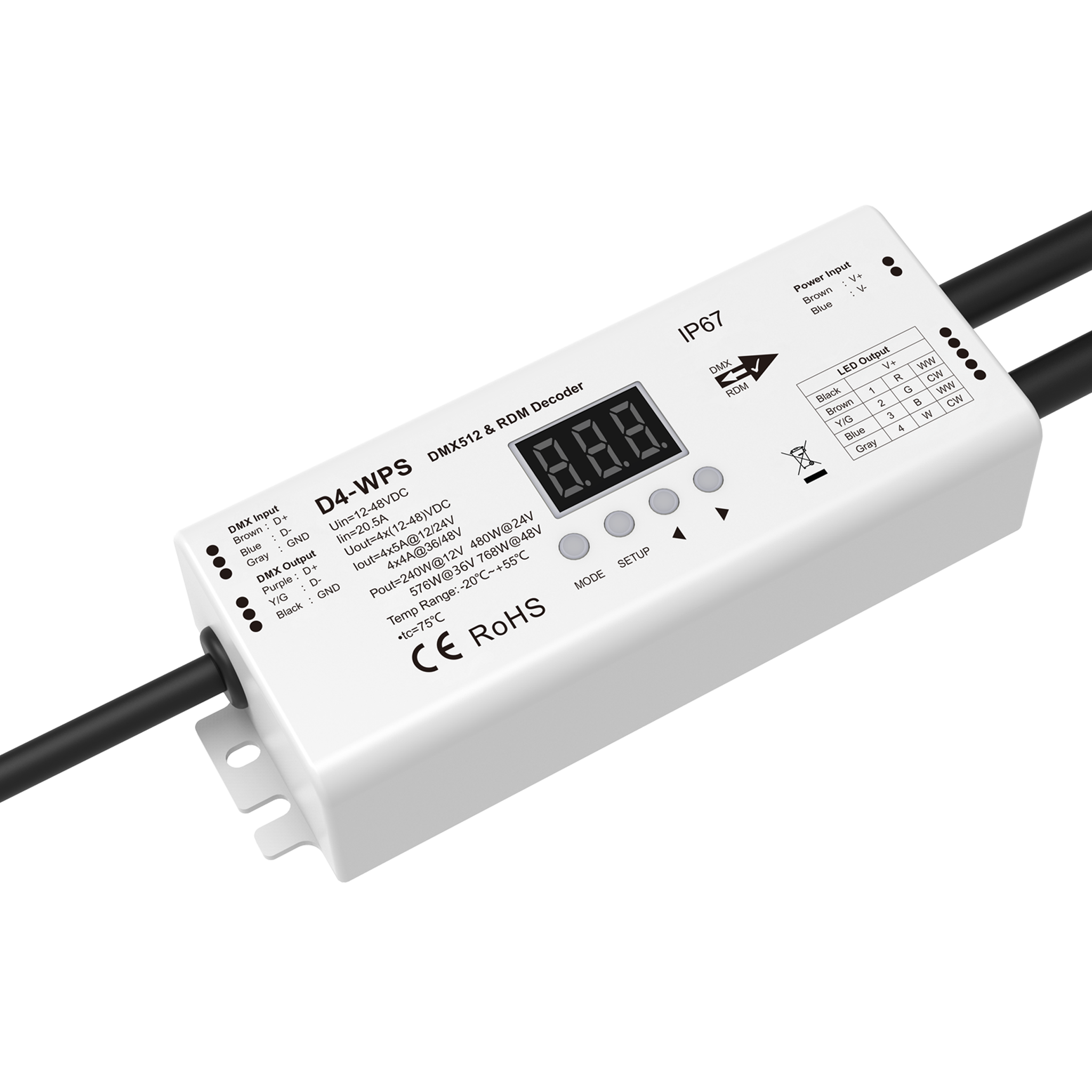

D4-WPS is an IP67 weatherproof DMX decoder designed for reliable outdoor and damp environments. It supports DMX512 and RDM, features a digital display for easy address setup, and offers 1, 2, or 4 channel output with smooth 8-bit or 16-bit dimming. With adjustable PWM frequency, linear or logarithmic dimming, and stand-alone RGB/RGBW and 4-channel dimmer modes, it delivers flexible control and comes with automatic overheat, overload, and short-circuit protection for safe operation.

Product Info

Code LCDMXSD-D4-WPS
Warranty 5 Years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 768W @ 48VDC
Output Current 5A/CH @ 12/24V 4A/CH 48V
Channels 4
Dimming Range 0-100%
Input Dimming DMX
Output Dimming PWM
IP Rating 67
Working Temperature -20°C to 55°C
PDF View Spec Sheet

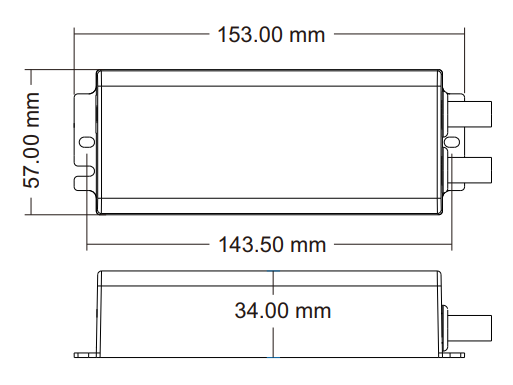

Dimension Drawing
