DMX Wall Dimmer Controler 4Zone 230VAC IP20

Enquire
Stock Available:
Auckland: Contact us | Christchurch: Contact us

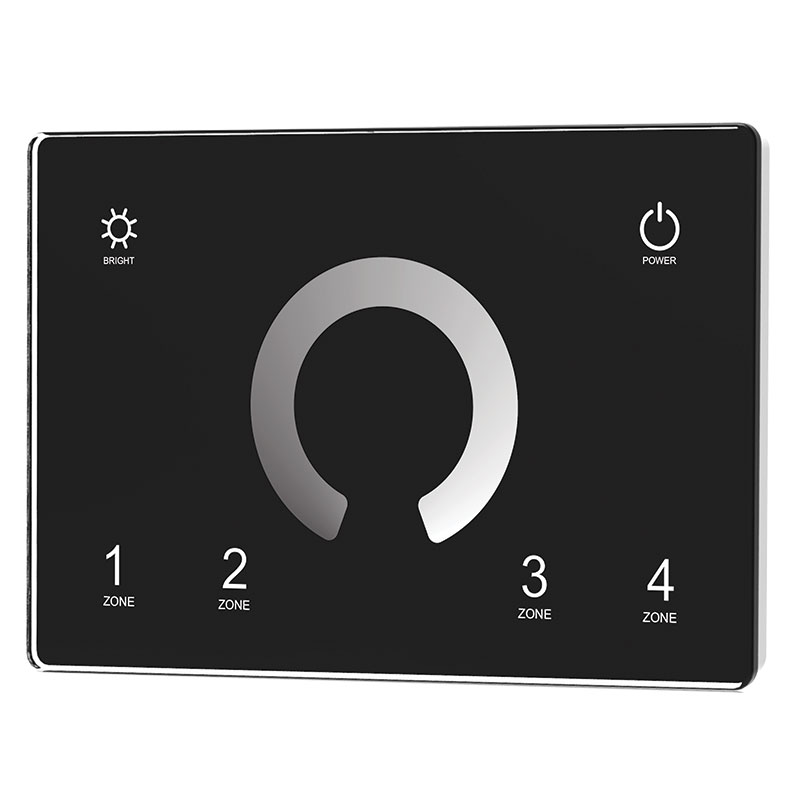

Designed for flexible lighting control, T11 glass touch panel supports DMX or RF control with a 4-zone remote function for single-colour systems. Featuring smooth touch dimming, and wireless expansion via 2.4G RF controllers, it delivers precision control in a modern design.

Product Info

Code LCDMXSD-T11-B
Warranty 5 Years
Voltage Input 100-240VAC
Wattage <24W
Channels 4
Dimming Range Dependent on driver(s)
Input Dimming Touch, RF
Output Dimming DMX, RF
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

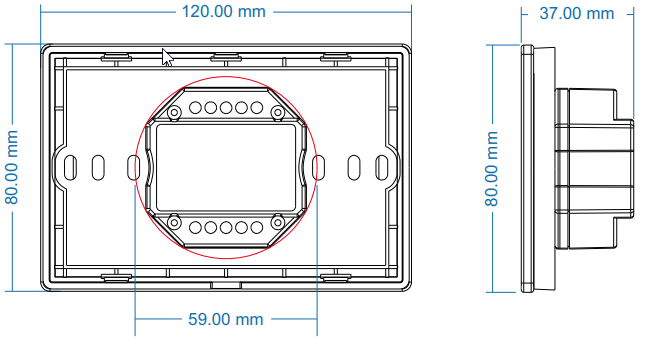

Dimension Drawing
