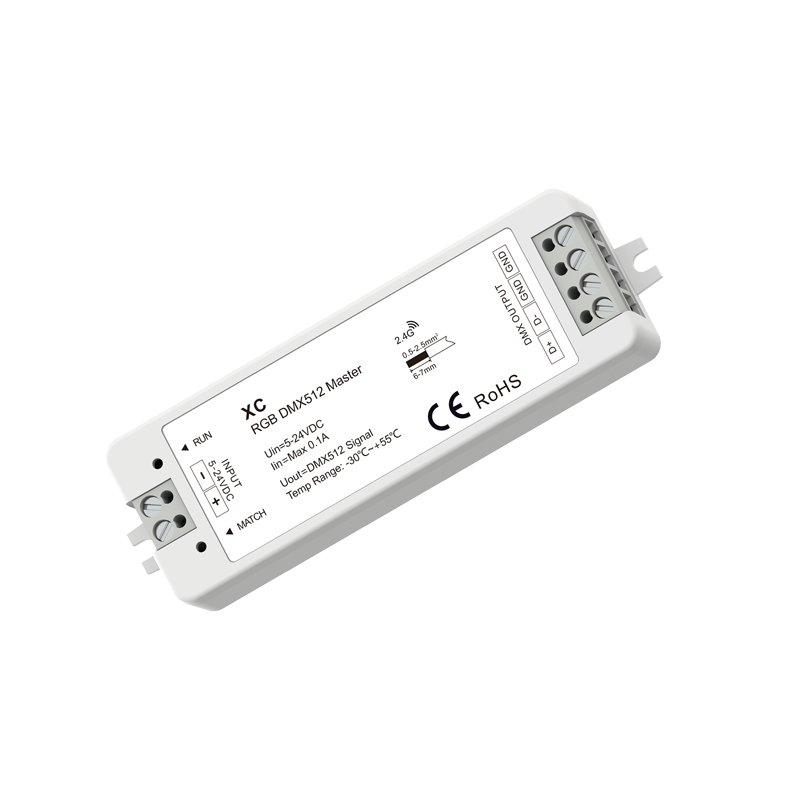

DMX512 Master Controller 5-24VDC

Enquire
Auckland: 2 EACH | Christchurch: 0 EACH

Designed for flexible pixel lighting applications, the XC4 controller delivers DMX512 output, wireless RF remote control, and 32 dynamic effects including chase, flow, and running patterns. Compatible with DMX decoders and DMX pixel fixtures for seamless system integration. Max 170 RGB pixels or 128 RGBW pixels (512 Channels).

Product Info

Code LCDMXSD-XC
Voltage 5-24V
Watts 1
IP Rating 20
Dimming Type RF
PDF View Spec Sheet
PDF Wiring Diagram

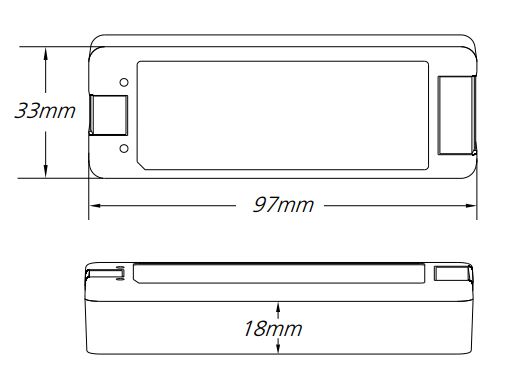

Dimension Drawing
