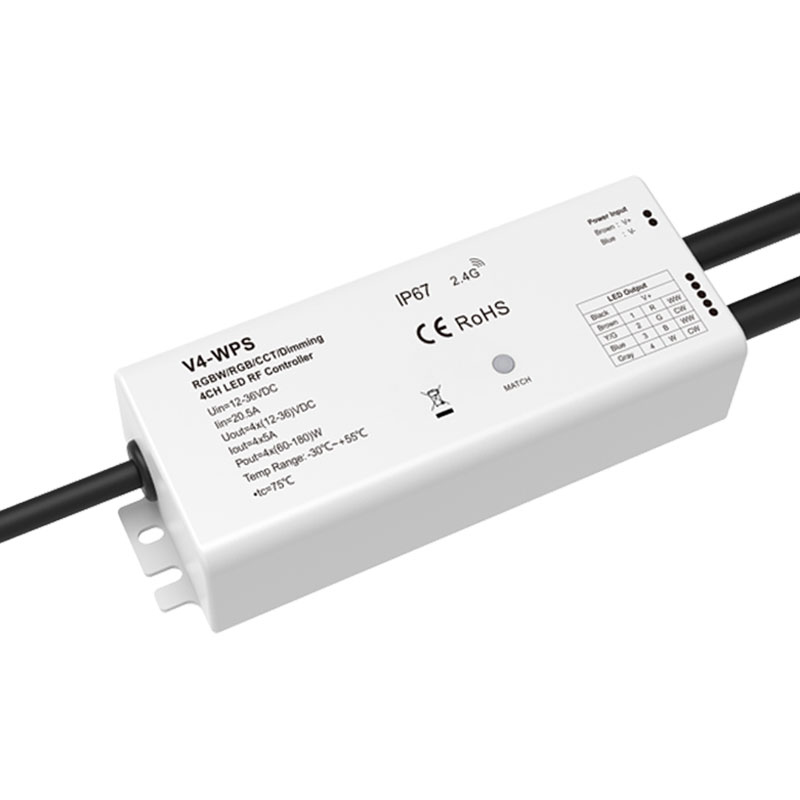

Led Controller 5A X 4Chan 12-48VDC IP67

Enquire
Stock Available:
Auckland: 8 EACH | Christchurch: Contact us

Designed for reliable outdoor and damp-location use, this IP67 rated RF controller delivers powerful, flexible lighting control in any environment. compatible with our range of RF 2.4G single-zone and multi-zone remotes, it supports single colour, dual colour, and RGB/RGBW lighting with ultra-smooth, flicker-free 0–100% dimming across 4096 levels. Enjoy 10 built-in dynamic RGB/RGBW lighting modes, selectable PWM frequencies up to 8k Hz, and adjustable fade-in and fade-out effects. With auto-transmitting signal extension up to 30 metres, multi-controller synchronisation, and support for up to 10 remotes per unit, this controller is the perfect solution for scalable, professional outdoor LED installations.

Product Info

Code LCRGBWSD-V4-WPS
Warranty 5 Years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 960W
Output Current 5A/ch
Amps Output 5A/ch
Channels 4
Dimming Range 0-100%
Input Dimming RF
Output Dimming PWM
IP Rating 67
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

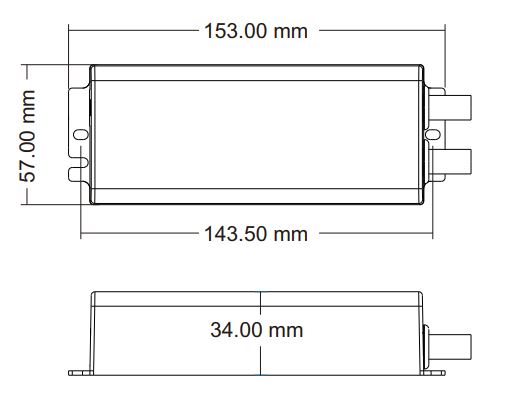

Dimension Drawing
