Led Controllerr 8A X 4Chan 12-48VDC IP20

Enquire
Stock Available:
Auckland: 15 EACH | Christchurch: 1 EACH

This 4-channel constant voltage PWM controller delivers powerful performance with up to 8A per channel and smooth, flicker-free 0–100% dimming across 4096 levels. Compatible with RF 2.4G single-zone and multi-zone remotes for single colour, dual colour, and RGB/RGBW lighting, it supports up to 10 remotes per controller. Featuring 10 built-in dynamic modes for RGB/RGBW, auto-transmitting signal up to 15 metres, multi-controller synchronisation, selectable PWM frequencies up to 8k Hz, adjustable fade effects, and automatic overload and short-circuit protection, it’s a reliable and versatile solution for professional LED control.

Product Info

Code LCRGBWSD-V4-X
Warranty 5 Years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 960W
Output Current 8A@12-24V, 5A@36-48V
Amps Output 8A@12-24V, 5A@36-48V
Channels 4
Dimming Range 0-100%
Input Dimming RF
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

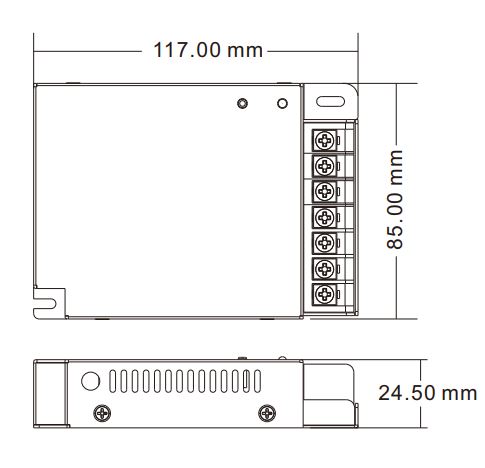

Dimension Drawing
