Led Dimmer 144W 3-6A 12-48VDC IP20

Enquire
Auckland: 16 EACH | Christchurch: 0 EACH

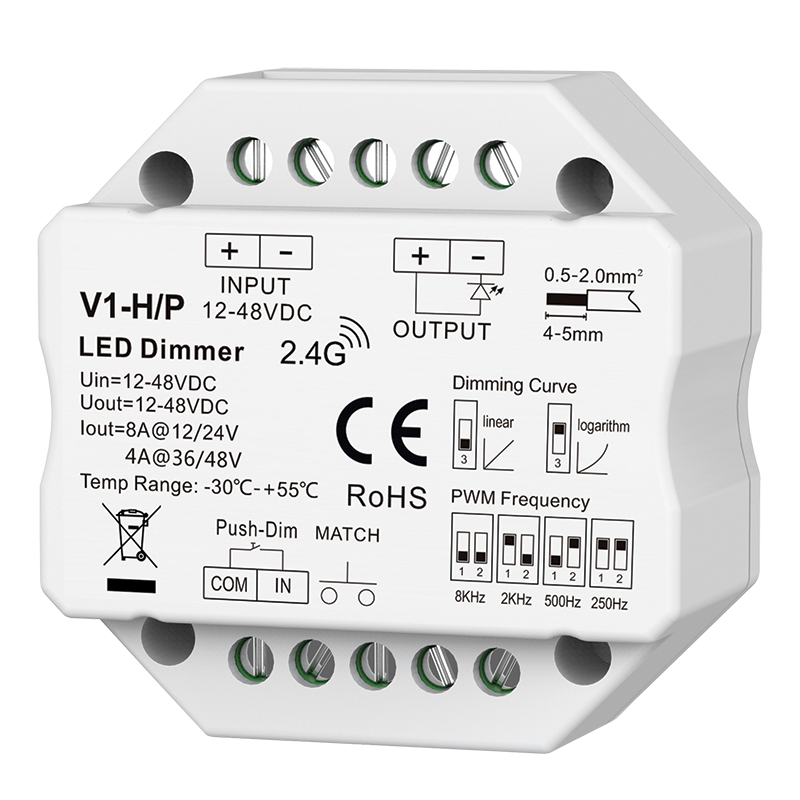

This RF dimming controller delivers smooth 0–100% dimming with 4096 brightness levels and supports single or multi-zone RF 2.4GHz remotes, with up to 10 remotes paired per controller. It features auto signal transmission for synchronized multi-controller operation, selectable logarithmic or linear dimming curves, adjustable PWM frequency, 3-second fade on/off, external push switch input, and fits neatly into a standard wall junction box.

Product Info

Code LCDMSD-V1-H/P
Voltage 12-48VDC
IP Rating 20
Dimming Type RF, Push
PDF View Spec Sheet
PDF Wiring Diagram

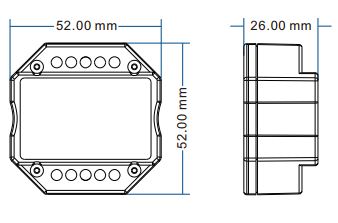

Dimension Drawing
