Led Dimmer 192W 4-8A 12-48VDC IP20

Enquire
Stock Available:
Auckland: 22 EACH | Christchurch: Contact us

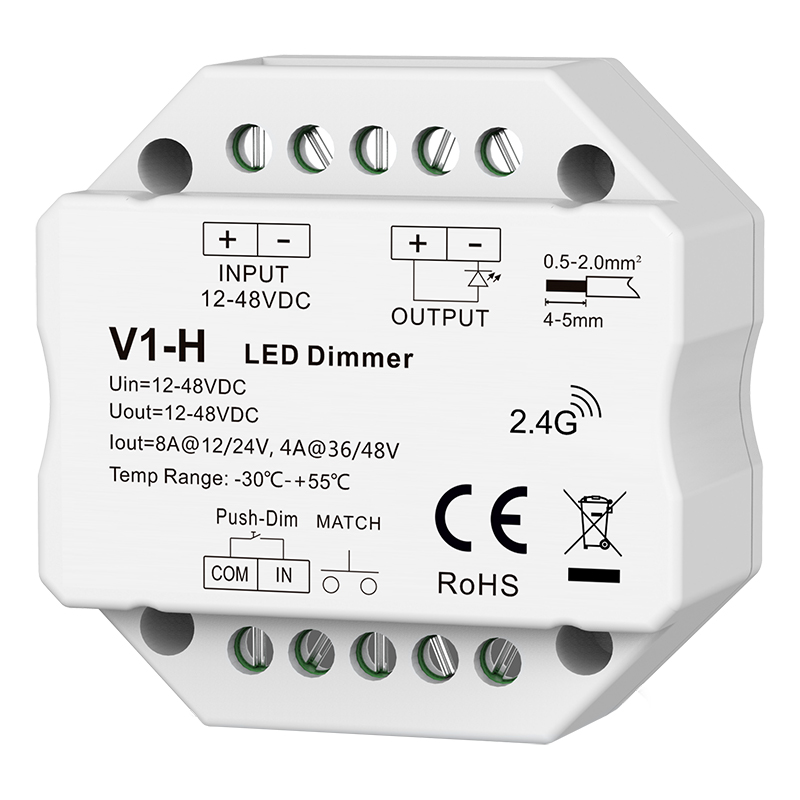

This V1-H RF dimming controller offers smooth 0–100% dimming with 4096 brightness levels and is compatible with single or multi-zone RF 2.4GHz remotes. It supports up to 10 paired remotes, features auto signal transmission for synchronized multi-controller control, includes a 3-second fade on/off option, accepts an external push switch, and fits neatly into a standard wall junction box.

Product Info

Code LCDMSD-V1-H
Warranty 5 Years
Voltage Input 12-48V DC
Voltage Output 12-48V DC
Output Power 192W
Output Current 8A 12-24VDC, 4A 36-48VDC
Amps Output 8A 12-24VDC, 4A 36-48VDC
Channels 1
Dimming Range 0-100%
Input Dimming RF, Push
Output Dimming PWM
IP Rating 20
Working Temperature -30°C~ +55°C
PDF View Spec Sheet
PDF Wiring Diagram

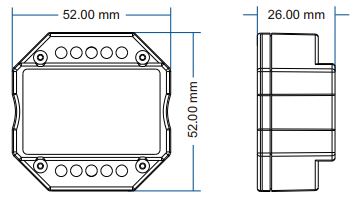

Dimension Drawing
