Led Dimmer 480W 15A 12-48VDC IP20

Enquire
Discontinued
Auckland: 0 EACH | Christchurch: 0 EACH

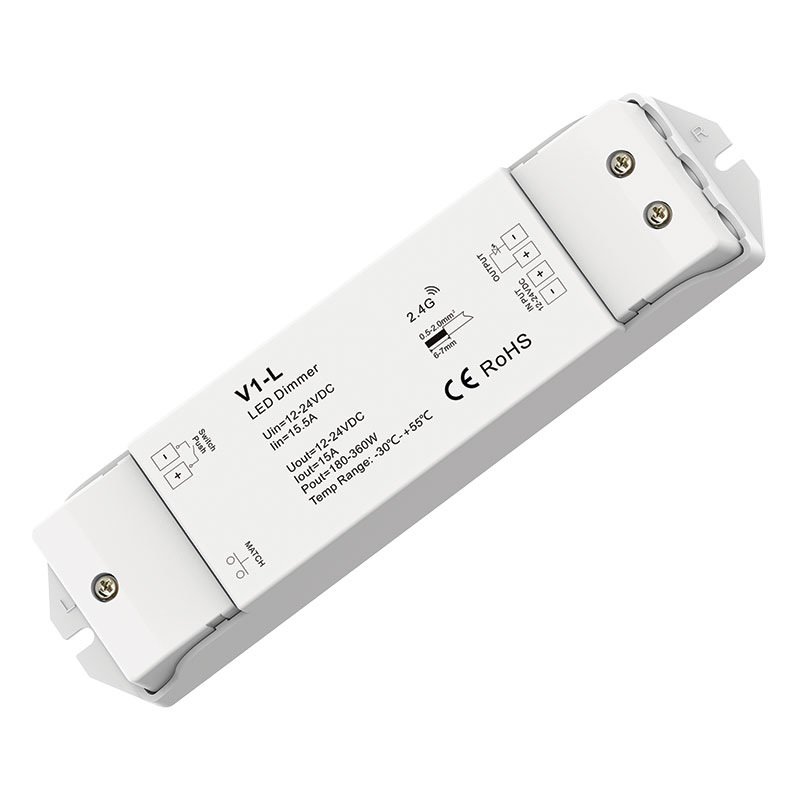

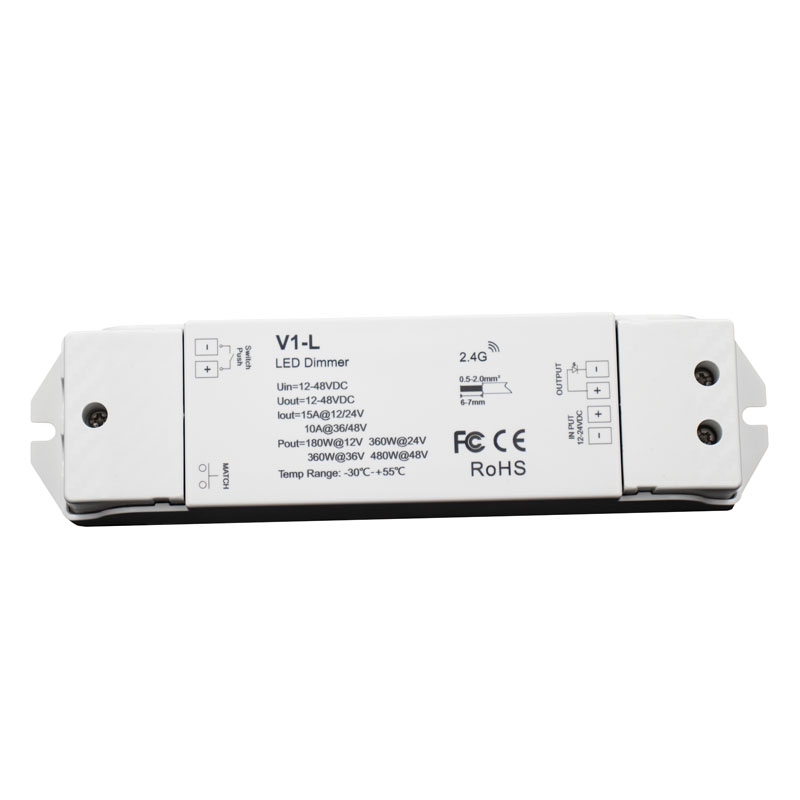

This V1-L RF dimming controller provides smooth 0–100% dimming with 4096 brightness levels and supports single or multi-zone RF 2.4GHz remotes, with up to 10 remotes per controller. It features auto signal transmission for synchronised control, external push switch input, selectable 3-second fade on/off, and built-in overheat, overload and short-circuit protection for safe, reliable operation.

Product Info

Code LCDMSD-V1-L
Voltage 12-48VDC
IP Rating 20
Dimming Type RF, Push
PDF View Spec Sheet
PDF Wiring Diagram

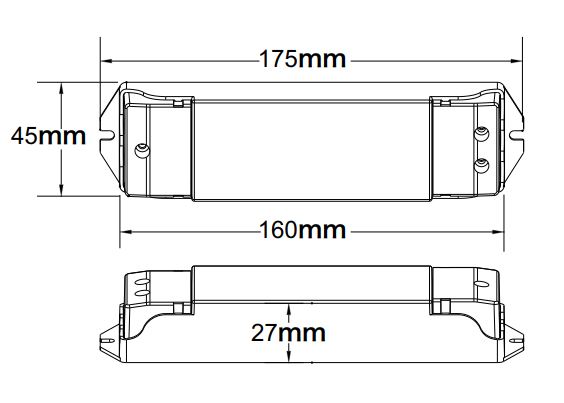

Dimension Drawing
