RGB Controller & Remote 4Ax3Ch 12/24VDC IP20

Enquire
Stock Available:
Auckland: 47 EACH | Christchurch: 25 EACH

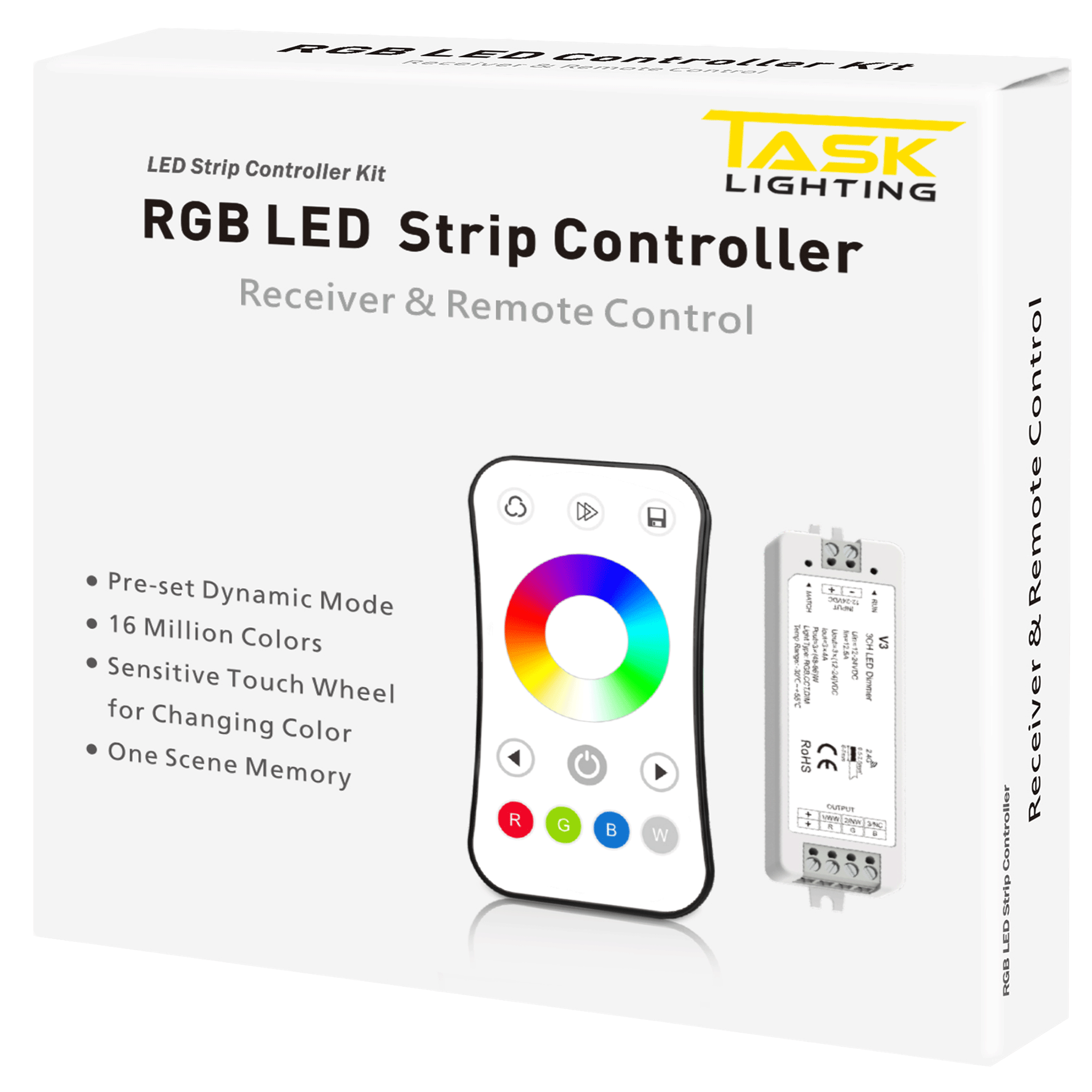

LCRGB800 pack includes both the remote and receiver, providing a complete wireless dimming and colour wheel control in one convenient kit. It delivers smooth, flicker-free dimming and switching using reliable 2.4GHz wireless technology, with a remote control range of up to 30 metres in open areas. Featuring an auto-transmitting function, each receiver can relay the signal to another receiver within 15 metres, extending total control distance beyond 100 metres. The system is also compatible with data repeaters for expanded output and enhanced signal coverage.

Product Info

Code LCRGB800
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Output Power 288W
Output Current 4A/ch
Amps Output 4A/ch
Channels 3
Dimming Range 0-100%
Input Dimming RF
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

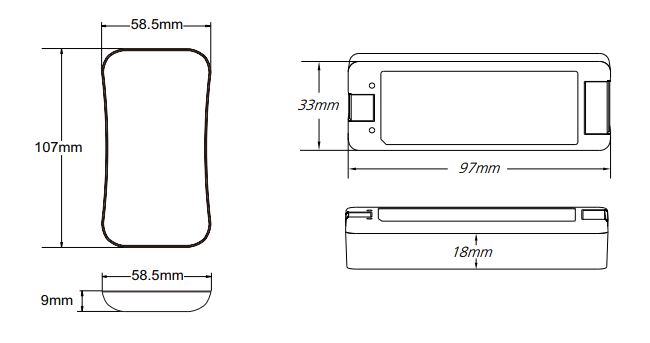

Dimension Drawing
