RGBW Controller 12-24VDC 3Ax4 IP20

Enquire
Stock Available:
Auckland: 20 EACH | Christchurch: Contact us

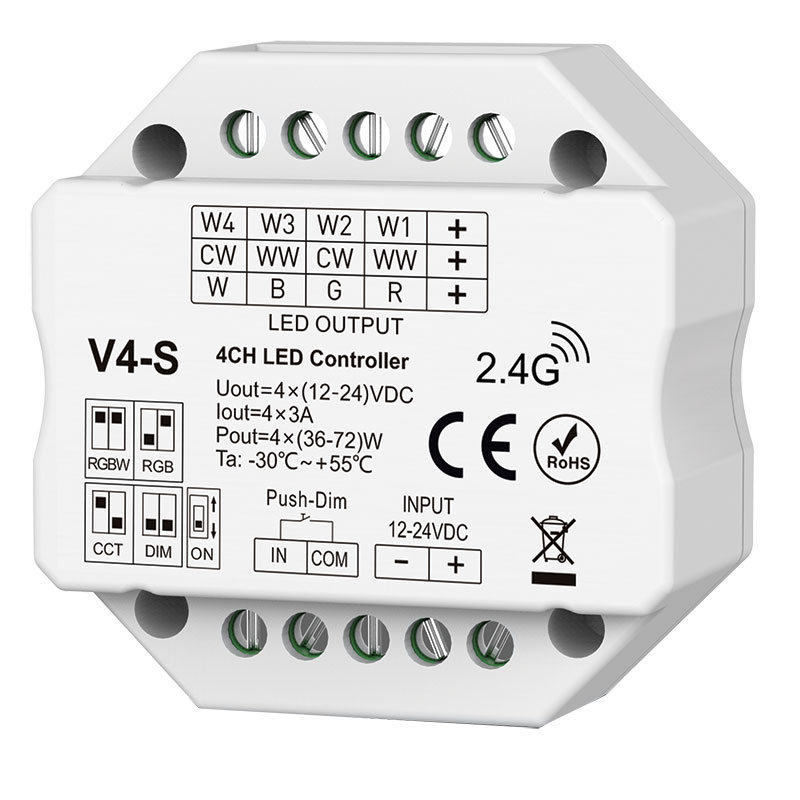

The V4-S is a compact constant voltage LED controller supports single colour, dual colour, RGB and RGBW lighting, easily set via DIP switch. Compatible with our range of 2.4G remotes and supporting up to 10 remotes per controller, it delivers smooth, flicker-free 0–100% dimming with 4096 levels of precision and 10 built-in dynamic lighting modes. With auto-transmitting signal up to 30m, multi-controller synchronisation, push-switch control, and a design that fits neatly into a standard wall junction box, it offers powerful and flexible LED lighting control.

Product Info

Code LCRGBWSD-V4-S
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Output Power 288W
Output Current 3A/ch
Amps Output 3A/ch
Channels 4
Dimming Range 0-100%
Input Dimming RF, Push
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

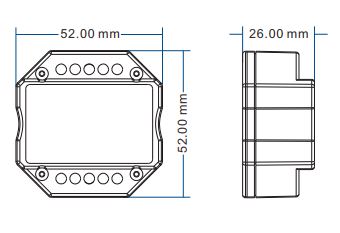

Dimension Drawing
