RGBW KNX Contr 12-36VDC 4X5A IP20

Enquire
Stock Available:
Auckland: 10 EACH | Christchurch: Contact us

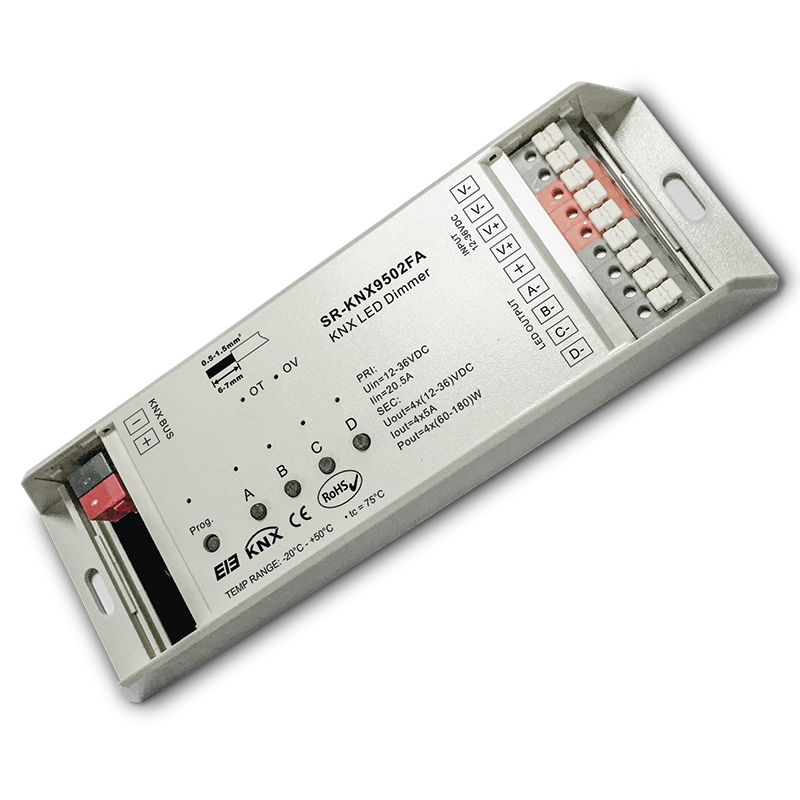

This constant voltage KNX LED dimmer delivers direct control of high-power LED lighting across four fully independent channels. Operating on a wide 12–36V DC input, it supports precise switching, absolute and relative dimming, real-time status and error reporting, and up to 15 programmable lighting scenes. Designed with secure push terminals and full KNX/EIB bus integration, it also features manual override control for added reliability.

Product Info

Code LCRGBW-KNX9502FA
Warranty 5 Years
Voltage Input 12-36V DC
Voltage Output 12-36V DC
Output Power 180W
Output Current 5A/ch
Amps Output 20A
Channels 4
Dimming Range 1-100%
Input Dimming KNX
Output Dimming PWM
IP Rating 20
Working Temperature -5°C to 45°C
PDF View Spec Sheet
PDF Wiring Diagram

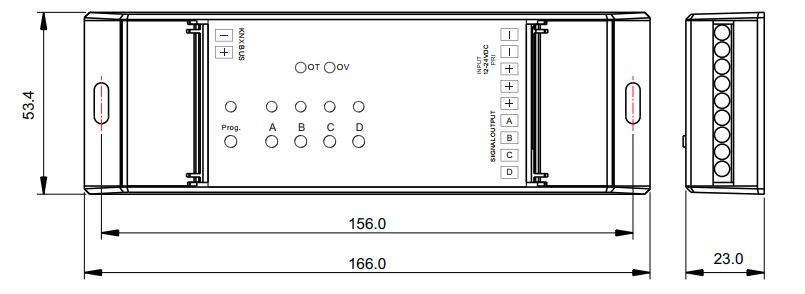

Dimension Drawing
