Dynamic SPI Controller RGB/RGBW 8Amp 5-24VDC

Enquire
Stock Available:
Auckland: 6 EACH | Christchurch: Contact us

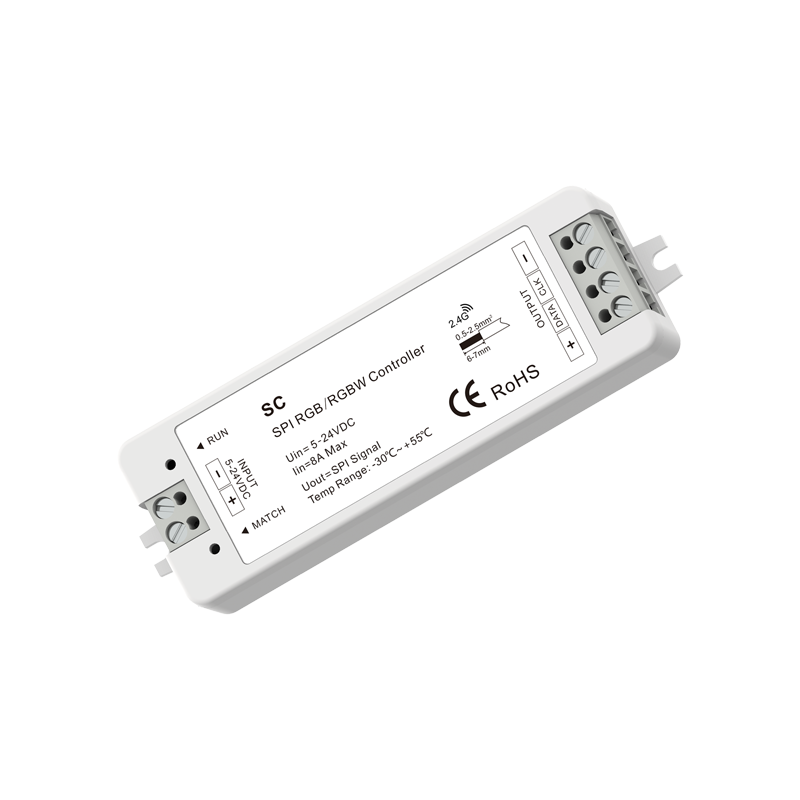

Our SC controller is a compact, multi pixel control solution designed for dynamic digital LED strip applications. Featuring SPI output and paired with a 2.4GHz RF remote, it provides smooth and responsive control of addressable RGB and RGBW strips. The controller supports a wide range of digital LED types, with adjustable IC settings and colour channel configuration for easy compatibility across different installations. With 40 built-in dynamic effects including chase, flow, trail, and gradual transitions, it enables creative, eye-catching lighting designs. Its mini form factor makes it ideal for space conscious applications.

Product Info

Code LC-SPI-SC
Warranty 5 Years
Voltage Input 5-24VDC
Voltage Output 5-24V
Output Power 191W
Output Current 8A
Amps Output 8A
Dimming Range 0-100%
Input Dimming RF
Output Dimming SPI
IP Rating 20
Working Temperature -30 °C to 55 °C
PDF View Spec Sheet
PDF Wiring Diagram
Dimension Drawing
