Wall Controller Tuneable White 3Ax4Chan 12-24V White

Enquire
Stock Available:
Auckland: 5 EACH | Christchurch: Contact us

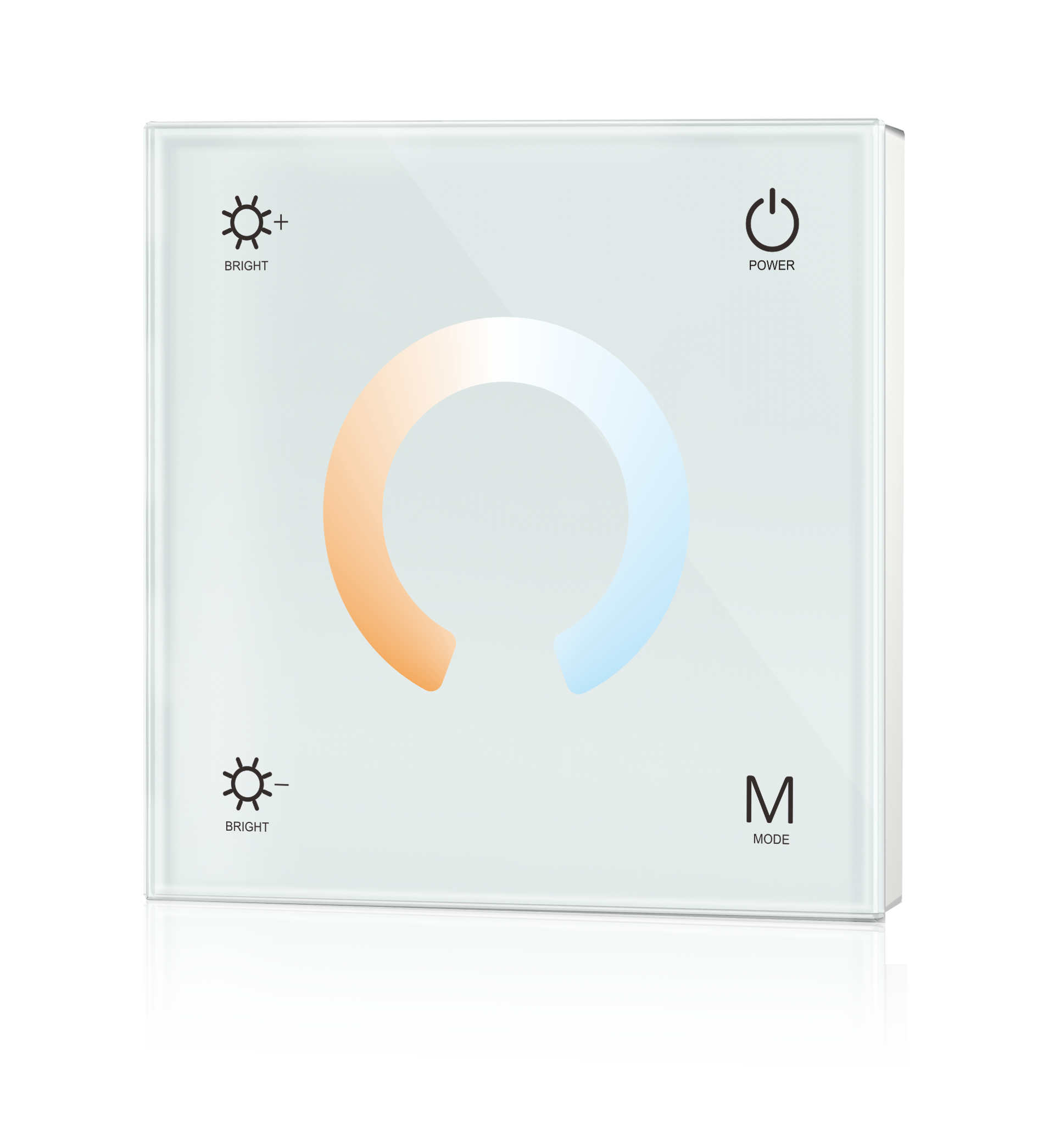

The T2 tunable white touch wall panel delivers smooth, intuitive control for constant voltage lighting systems. Featuring an ultra sensitive, high strength glass touch interface with soft backlighting, it offers precise brightness and colour temperature adjustment at the touch of a finger. Compatible with RF 2.4G single-zone control, it provides flexible wired or wireless operation for modern lighting installations. Designed for premium interiors, it combines elegant styling with effortless performance.

Product Info

Code LCDWSD-T2-W
Warranty 5 Years
Voltage Input 12-24V DC
Voltage Output 12-24V DC
Output Power 288W
Output Current 3A/ch
Amps Output 12A
Channels 4
Dimming Range 0-100%
Input Dimming PWM
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

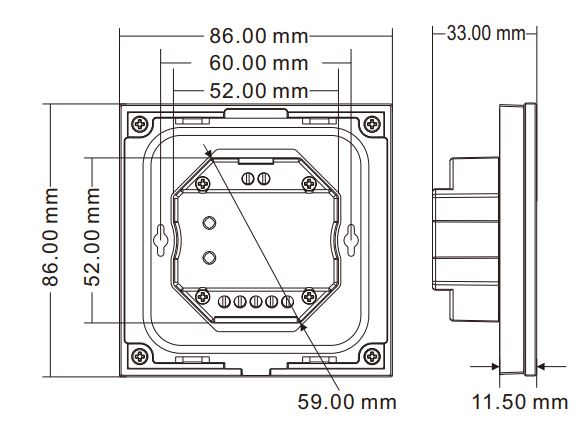

Dimension Drawing
