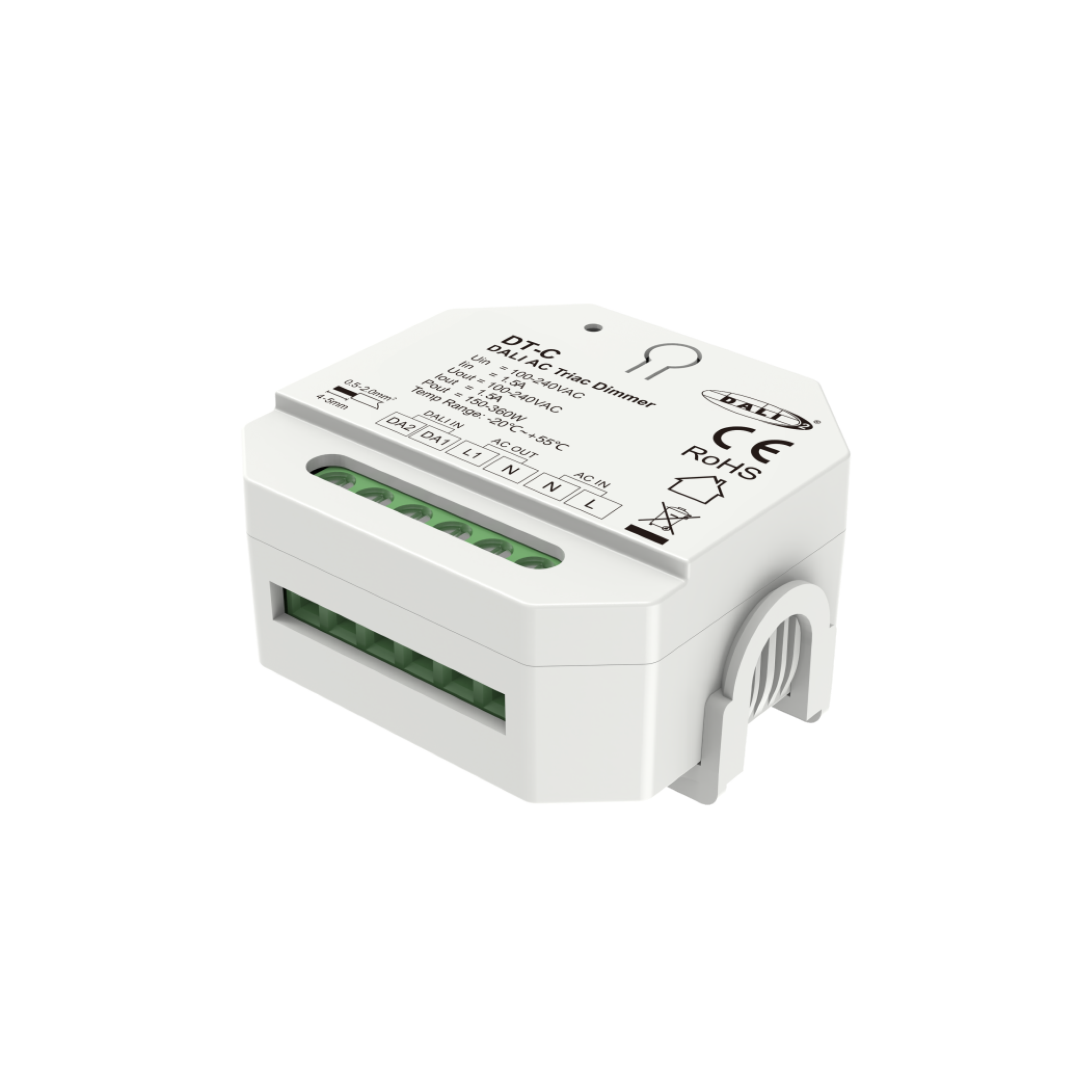

1CH DALI Triac Dimmer 360W

Enquire
Auckland: 2 EACH | Christchurch: 0 EACH

The DTC controller is a single-channel AC phase-cut DALI dimmer with one DALI address and one channel output, designed for smooth dimming and switching of single colour dimmable LED strips/lamps, as well as traditional incandescent and halogen lighting. It is DALI-2 certified and fully compliant, ensuring reliable compatibility with DALI systems from leading international manufacturers. The DALI address is automatically assigned by the DALI master for easy setup. Users can select leading-edge or trailing-edge dimming modes, adjust minimum brightness levels, and connect an external push switch for convenient on/off and 0–100% dimming control. Built-in overheat and overload protection ensures safe, dependable operation with automatic recovery.

Product Info

Code LCDMSD-DTC
Voltage 100-240VAC
IP Rating 20
Dimming Type DALI, Push
PDF View Spec Sheet
PDF Wiring Diagram

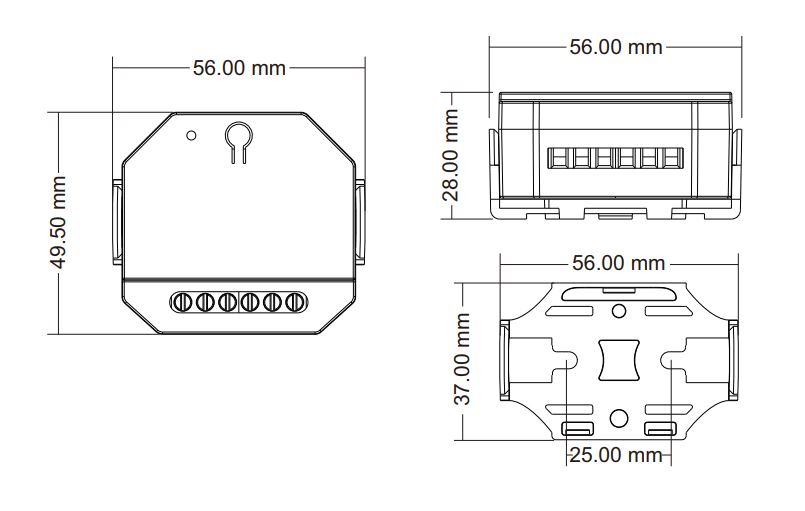

Dimension Drawing

Similar Products

  • View Product

    LCDM-MAN-20A-24V

    Led Dimmer Manual 20A12 -24VDC V1K
  • View Product

    LCDM600

    Remote Dimmer 12/24VDC IP20 8A
  • View Product

    LCDMSD-DA1

    DALI2 Single Channel 15A 12-24VDC, 10A 48VDC IP20
  • View Product

    LCDMSD-DA4

    DALI DT6 Dim Slave 12-48VDC 4X5A IP20
  • View Product

    LCDMSD-DA4M

    DALI2 DT8 Dim Slave 12-48VDC 4X5A @ 24VDC IP20
  • View Product

    LCDMSD-L4-L

    Dim Slave 0-10V 5A X4Chan 12-36V 1P20
  • View Product

    LCDMSD-LV-L

    Dim Slave 0-10V 12A 12-36V 1P20
  • View Product

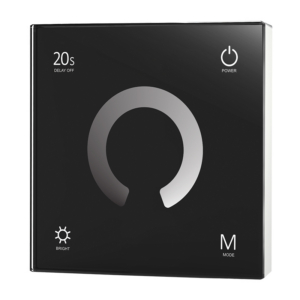

    LCDMSD-T1-B
