Wall Controller RGB 3Ax4Chan 12-24V White

Enquire
Stock Available:
Auckland: 26 EACH | Christchurch: Contact us

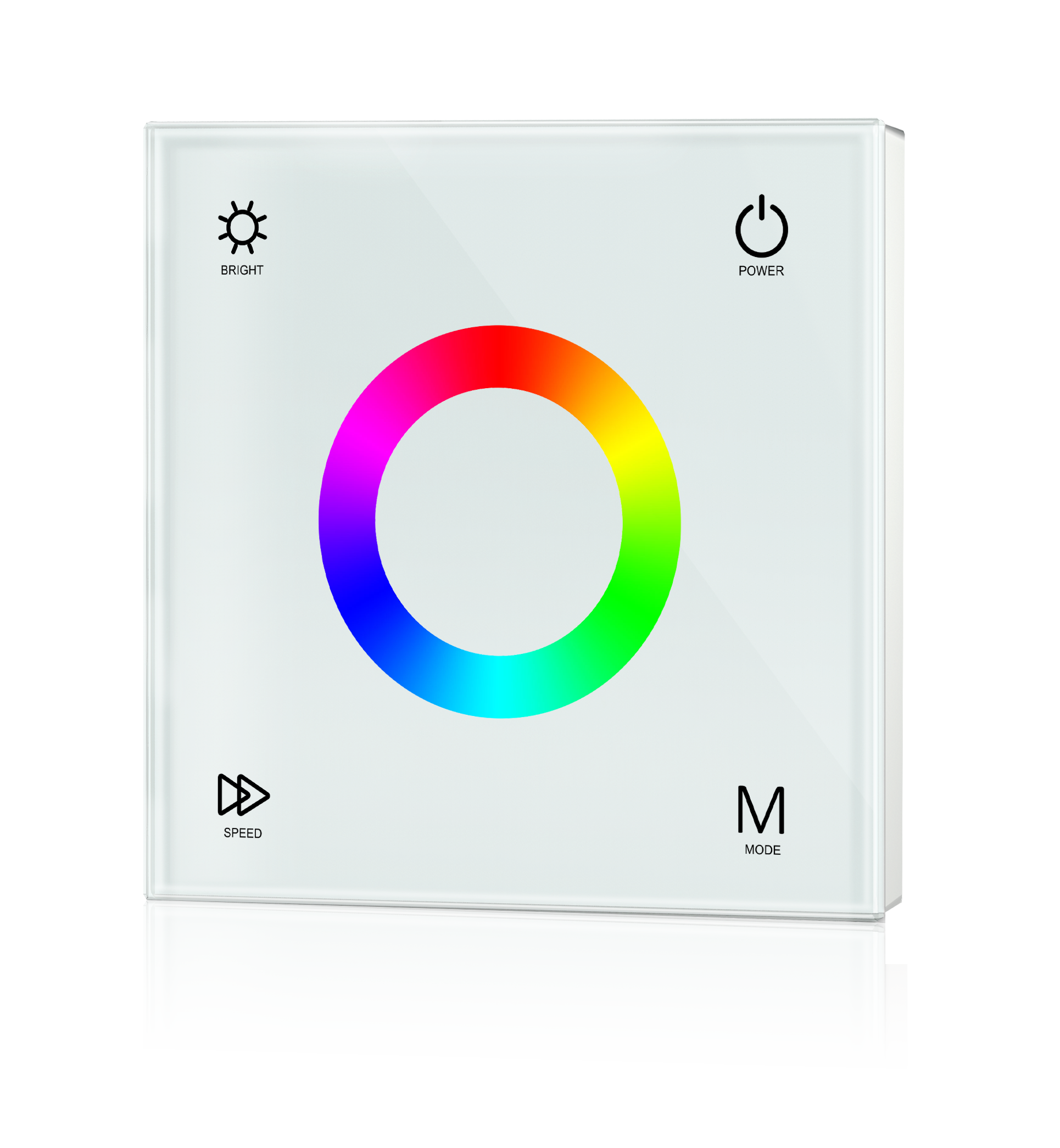

The T3 RGB touch wall panel delivers smooth, intuitive control for constant voltage lighting systems. Featuring an ultra sensitive, high strength glass touch interface with soft backlighting, it offers precise brightness and colour control at the touch of a finger. Compatible with RF 2.4G single-zone control, it provides flexible wired or wireless operation for modern lighting installations. Designed for premium interiors, it combines elegant styling with effortless performance.

Product Info

Code LCRGBSD-T3-W
Warranty 5 Years
Voltage Input 12-24V DC
Voltage Output 12-24V DC
Output Power 288W
Output Current 3A/ch
Amps Output 3A/ch
Channels 3
Dimming Range 0-100%
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

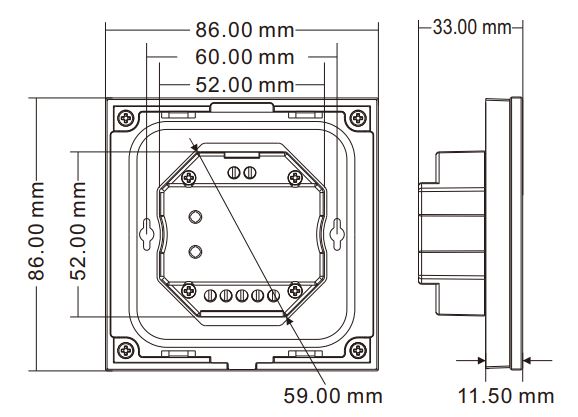

Dimension Drawing
